Jura C-E-F-J-S-X-Z Thermoblock Temperature Sensor

Alternative Views:

PRICE: $44.99

AVAILABILITY: In Stock

SHIPPING: Usually Ships in 24 Hours
PRODUCT CODE: 10036

QUANTITY:

Description

Includes

Diagram

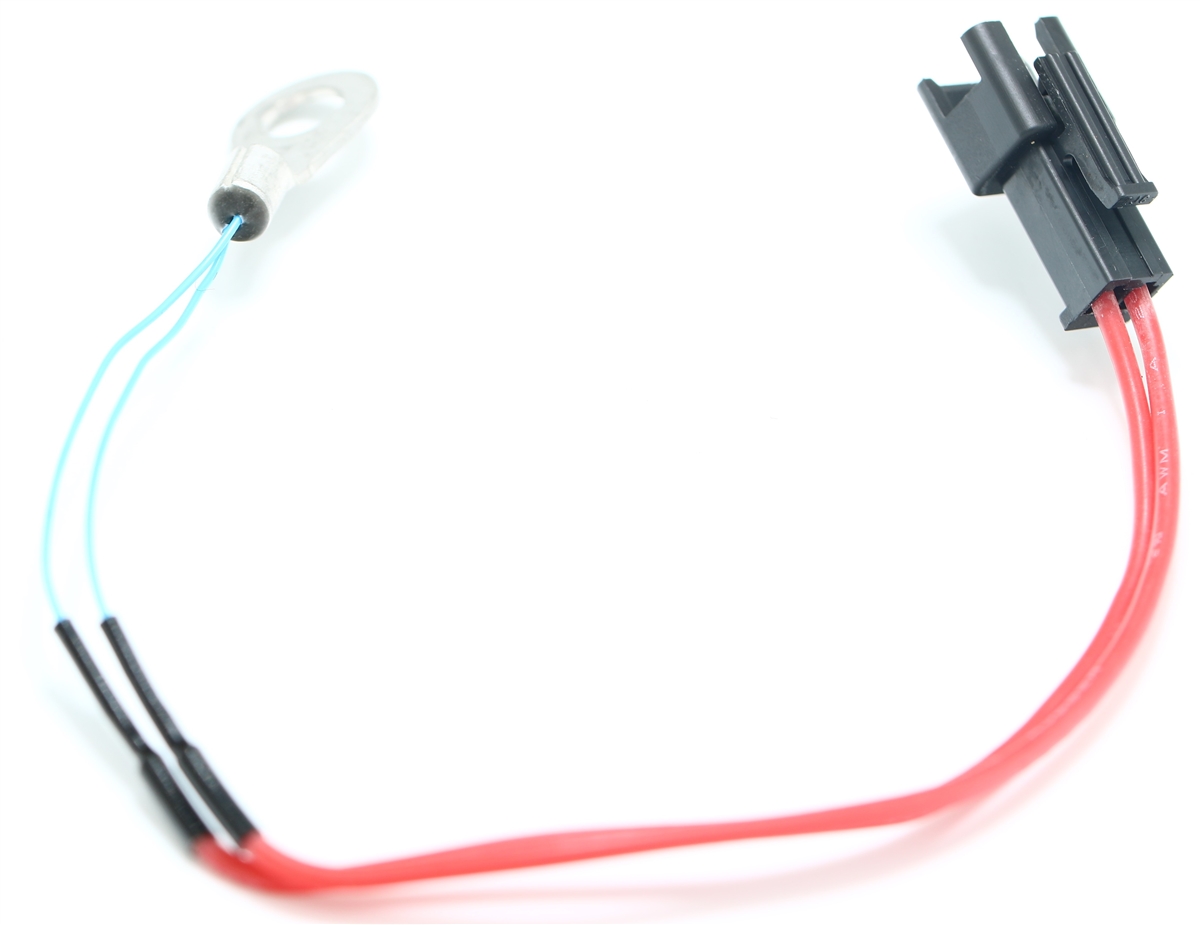

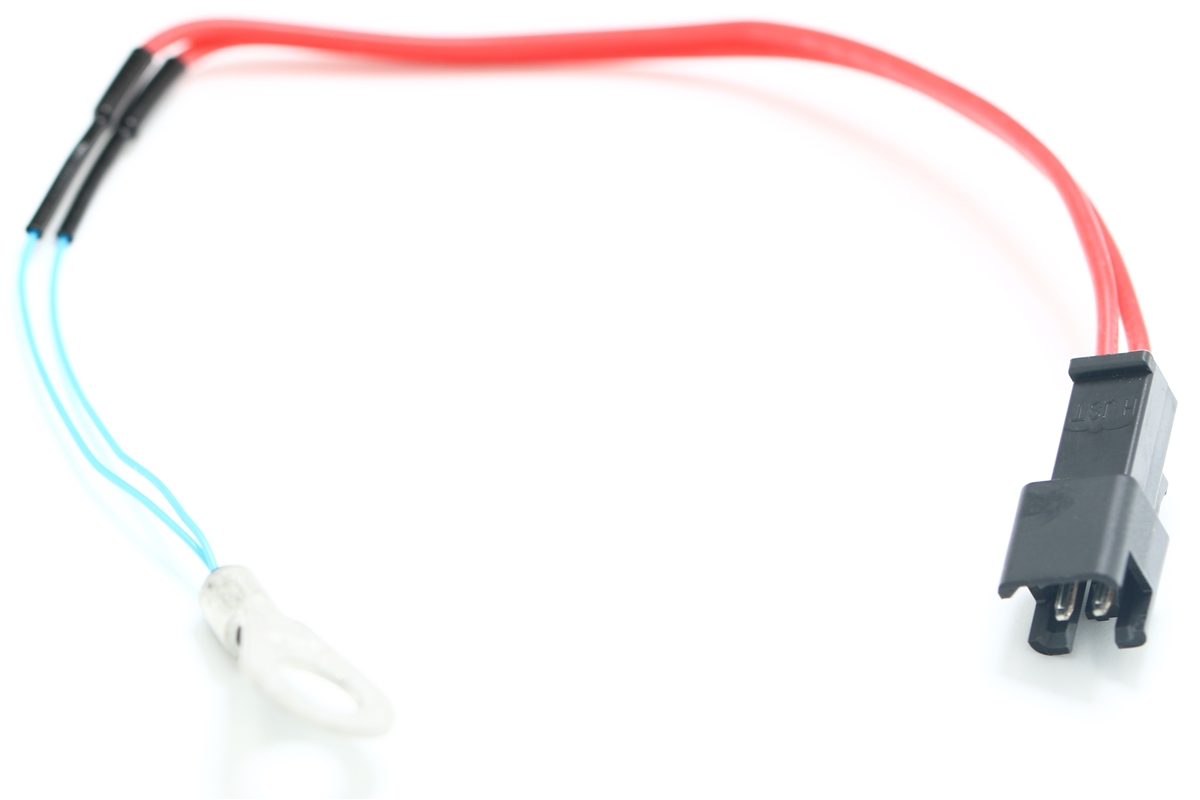

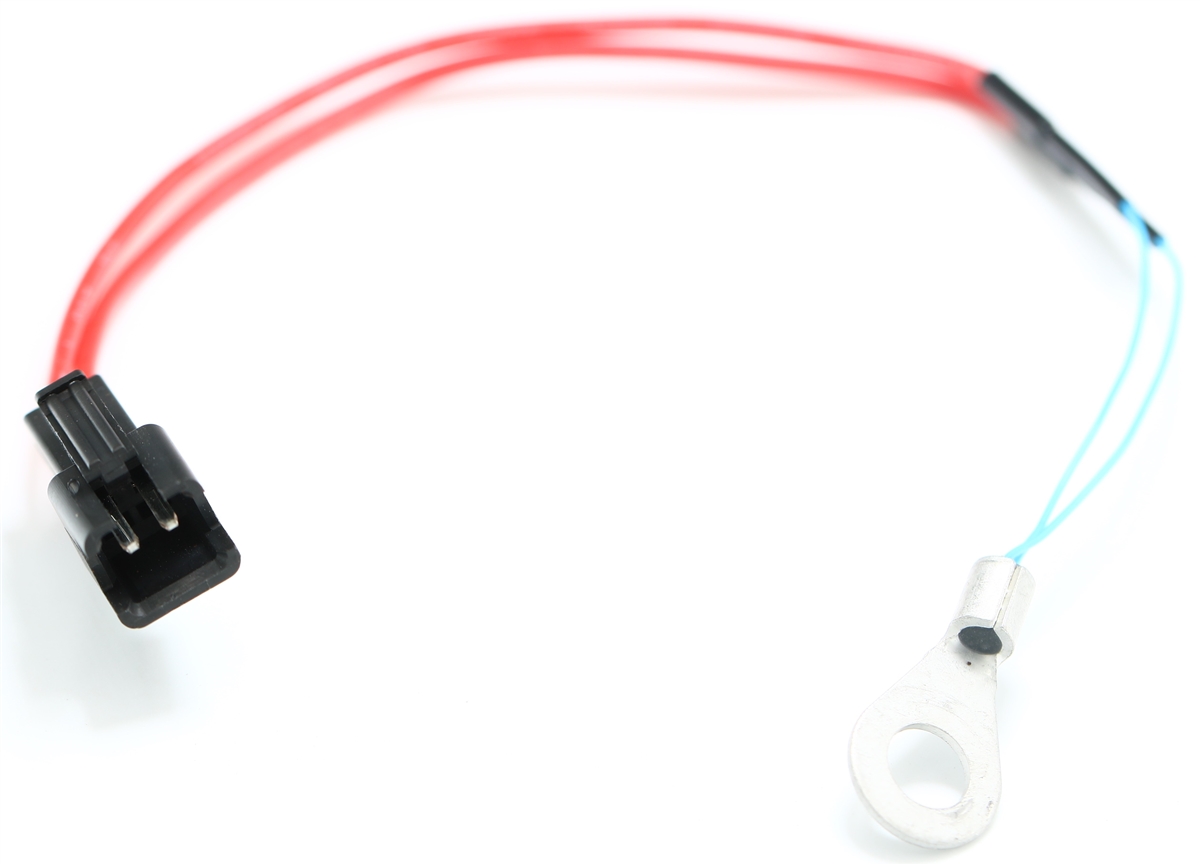

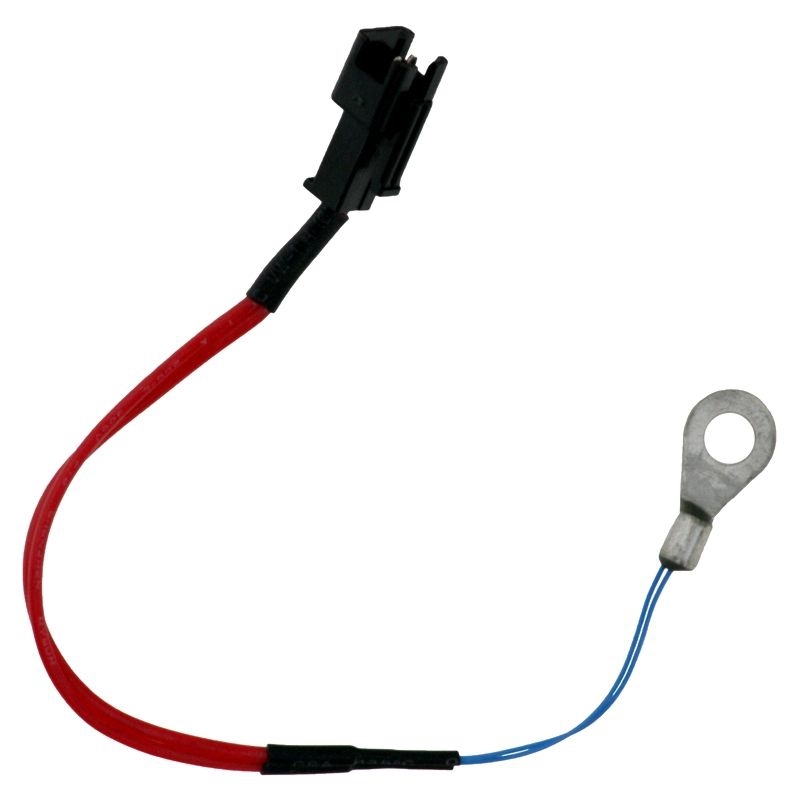

Jura Capresso-Impressa C-E-F-J-S-X-Z Thermoblock Temperature Sensor

The Thermoblock Temperature sensor is secured to the thermoblock with a T25 Torx Screw. The opposite end connects to another wire that leads directly to the power board. The temperature sensor measures the temperature of the thermoblock and transmits the data to the board. When the required temperature is reached, the board allows the coffee machine to proceed to the next step of the selected function. If the thermoblock does not reach, or exceeds, the required temperature, an error code 1-4 will be displayed.

Error messages relating to the Temperature Sensor:

Model Line:	Model:	Model Number:
Jura Capresso-Impressa C-Line:	C5 - C9 - C50 - C55 - C60 - C65 - C70 - C90	13531 - 13422 - 13452 - 13681 - 13739 - 15006 - 15068
Jura Capresso-Impressa E-Line:	E5 - E8 - E9 - E10 - E20 - E25 - E30 - E40 - E45 - E50 - E55 - E60 - E65 - E70 - E74 - E75 - E80 - E85	15070 - 13187 - 15109 - 13204
Jura Capresso-Impressa F-Line:	F5 - F7 - F8 - F9 - F50 - F55 - F70 - F90 - XF50 - XF70	13185 - 13412 - 13345 - 13413 - 13171 - 13188 - 13684 - 15005 - 15065 - 13273
Jura Capresso-Impressa J-Line:	J5 - J6 - J7 - J9 - J9.2 - J9.3 - J9.4 - J80 - J85 - J90 - J95 - XJ5 - XJ9	13333 - 13548 - 13592 - 13673 - 15075 - 15076 - 13637
Jura Capresso-Impressa S-Line:	S7 - S8 - S9 - S9 One Touch - S50 - S55 - S70 - S75 - S85 - S90 - S95	13179 - 13289 - 13180 - 13936 - 13674 - 13215 - 13423 - 13448
Jura Capresso-Impressa X-Line:	X5 - X7 - X9 - X30 - X70 - X90 - X95 - XS9 - XS90 - XS95 - XS90 One Touch - XS95 One Touch	13118 - 13372 - 12952 - 13318 - 13429
Jura Capresso-Impressa Z-Line:	Z5 - Z6 - Z6 P.E.P. - Z7 - Z8 - Z9	13214 - 13339 - 13418 - 13299 - 15093 - 13549 - 13752
